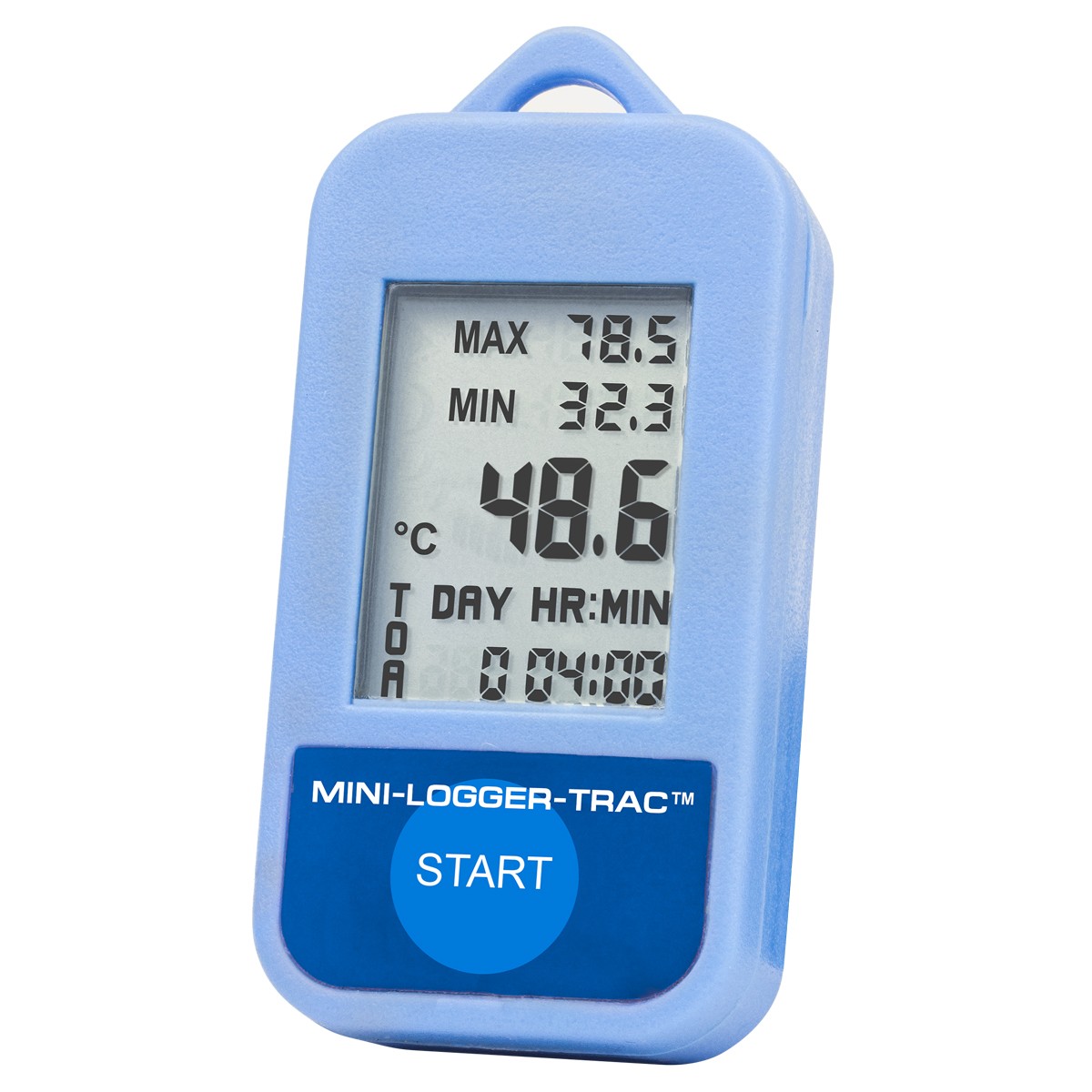

- Mini-Logger-Trac Datalogging Thermometer
- Duration of Temperature excursion
- Data-logger with user-defined recording intervals
- Active LCD Display shows the following important data
- Current temperature
- Minimum/Maximum temperatures
- Recording status
- Run Time
- Alarm (Excursion) Cumulative Time
- Alarm Tally
Know the Temperature Excursion Duration immediately, no data download required
Active LCD display technology allows the duration (cumulative time) for the temperature excursion to be viewed on the display immediately without the need to download data. The user may select the acceptable temperature parameters (high and low temperature values) in 1° increments. The cumulative alarm duration timer is started each time the reading is outside of the acceptable temperature parameters to provide a total excursion time since the start of recording.
LCD display shows the running alarm tally based on the acceptable temperature range and recording interval. Alarm tally is incremented when the reading goes outside the acceptable temperature parameters during the recording interval and continues to be incremented if the temperature has remained outside the acceptable temperature parameters during the following interval.
User Selectable Recording Intervals
For complete flexibility, the user-defined recording interval may be set based on the number of desired days to log (from 4 hours to 365 days) or the desired time interval (from every 2 seconds to every 24 hours). Internal flash memory stores 7680 readings. To ensure that no data is lost, once the memory is full the thermometer will stop logging data (data will not be overwritten). While recording, the following information is displayed: Current, Minimum and Maximum temperature achieved and cumulative running time. Once an alarm condition has occurred, the following additional information is displayed: Alarm Tally, “ALARM” notification, cumulative alarm time.
Compact size and IP66 Waterproof Rating
Measuring only 2 x 1 x 0.5 inches and weighing only 0.75 ounces, it is the perfect solution for monitoring material in transit as well as reagents, clinical samples, vaccines, pharmaceuticals and food items in any location. Waterproof design (IP66) eliminates concerns when located in damp environments or areas that are required to be washed down.
Individual Logger-Trac™ Thermometers are pre-programmed with alarm values of 2°C (low) and 8°C (high) and a recording interval to allow for 30 days of recording (readings are logged every 5 minutes, 33 seconds).
Required Accessories (To download data and restart datalogger)
|Probe Temperature Range||-31 to 122°F / -35 to 50°C|
|Temperature Accuracy||±0.2°C from 0 to 10°C; ±1°C otherwise|
|Weight||0.75 ounces (20.5 grams)|
|Temp MIN/MAX Memory||Y|
|Exportable Data (Y/N)||Y|
|Dimensions||2 x 1 x 0.5 inches|
