Traceable® Memory-Card Humidity/Temperature/Dew Point is a stand-alone unit with data logging capabilities. It records readings from once a minute up to once every 720 minutes on a removable standard SD memory card—identical to types in digital cameras. Memory card reader (supplied) plugs into any USB computer port for an instant report. Text report includes date/time-of-day and readings of sensors, report may be sent to any spreadsheet or database. Unit monitors cabinets, incubators, clean rooms, store rooms, labs, hoods, and critical areas.
Features:
- Portable card reader with USB connector plugs into any computer—no software to install
- Memory card text file shows date, time-of-day, and all sensor readings in a single line
- Minimum/Maximum feature displays highest/lowest readings for any time period
- Alarm features beeps and flashes a bright red LED when temperature, humidity, and dew point rise above or fall below user-set trip points, alarm sets in 0.1 increments

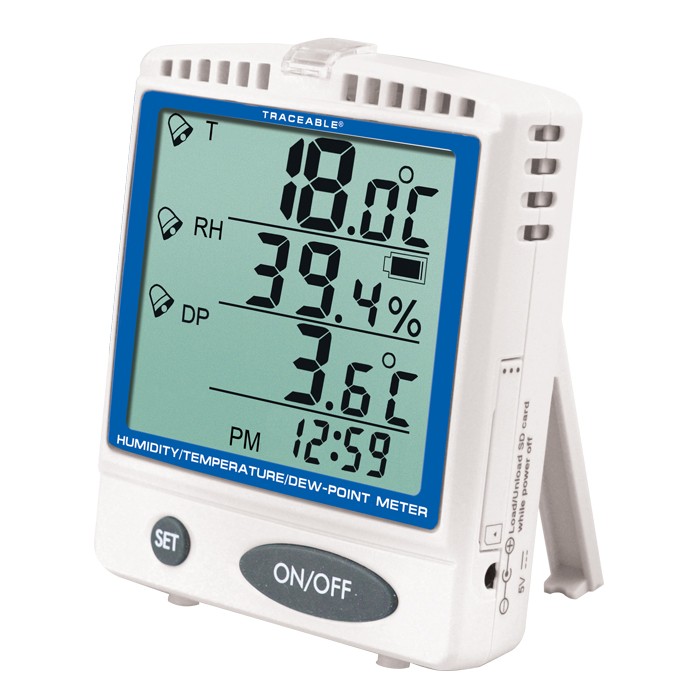

- Unique 4-line display simultaneously shows ambient temperature, humidity, dew point and time-of-day
- Operates using supplied batteries or supplied adaptor (batteries last one year with no data capture and one month with sampling rate of one per minute) (if adaptor receives no current battery provides automatic backup) Traceabl
Traceable® Certificate
Multi-point calibration on an individually-numbered Traceable® Certificate which assures accuracy from our ISO/IEC 17025:2017 (1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.
Specifications:
- Sampling rate: Once a minute up to once every 720 minutes (user configurable)
- Memory: 256 mb memory card (up to 4 GB card may be used)
- Functions: Min/Max memory, High/Low alarm, data capture
- Temperature range: –10 to 70.0°C with 0.1° resolution
- Temperature accuracy: ±1°C
- Humidity range: 0.0 to 99.9%, resolution 0.1,
- Humidity accuracy: ±5%RH at 25°C in range of 20 to 85%RH; ±7%RH elsewhere
- Dew Point range: –20.0 to 70.0°C with 0.1° resolution
- Display: 4-line readout, LCD digit height 0.7 inches
- Size: 4-1/4 x 3-1/2 x 1-1/4 inches
- Lightweight: 7 oz. (200g)
- Case: high-impact, chemical-resistant ABS plastic
- Supplied: 256 mb SD memory card, USB memory card reader, magnetic mounting strips, hook and loop tape, wall mount, bench stand, batteries, adaptor, and Traceable® Certificate
| RH Range | 0.0 to 99.9% RH |
|---|---|
| RH Resolution | 0.1% RH |
| RH Accuracy | ±5% RH at 25°C between 20 to 85% RH; ±7% RH elsewhere |
| Probe Type | 1-Internal Ambient Temp/RH Sensor |
| Ambient Temperature Range | –10.0 to 70.0°C (14.0 to 158.0°F) |
| Ambient Temp Resolution | 0.1° |
| Ambient Temp Accuracy | ±1°C |
| Dew Point Range | –20.0 to 70.0°C |
| Dew Point Resolution | 0.1° |
| RH Min/Max Memory | Y |
| Data Logging | Y |
| Exportable Data (Y/N) | Y |
| Export Data(output method) | With included SD card and USB Card reader |
| LCD Digit Size | 0.7 in |
| Dimensions | 4-1/4"x3-1/2"x1-1/4" |
| Weight | 7 ounces |
| A/C Plug (Y/N) | N |
| Traceable | Y |
| CE Marked | Y |
| Supplied With | 256 mb SD memory card, USB memory card reader, magnetic strips, hook and loop tape, wall mount, |
