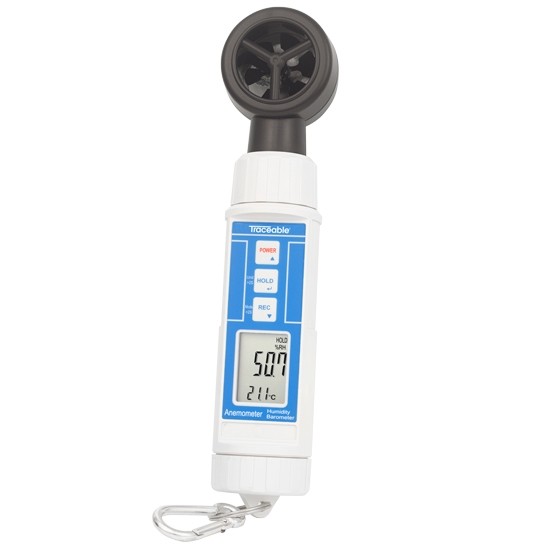

Traceable® Vane Anemometer Pens Complete Description
Three units provide for airflow/temperature; airflow/temperature/humidity/ dew point; and airflow/temperature/humidity/dew point/barometric pressure.
Easy to use rugged design
Simple operation eliminates the need to refer to instructions. Designed for intuitive, easy operation by everyone. Tough ABS plastic housing with O-ring seal and membrane keypad keep out dust and dirt, assuring a long life in severe lab or harsh plant environments. HOLD button freezes the reading on the display. High contrast 3/8-inch-high LCD digits are easy to read. At the press of a button, unit recalls minimum/ maximum readings
Traceable® Certificate
An individually-numbered Traceable® Certificate is provided with each unit. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.

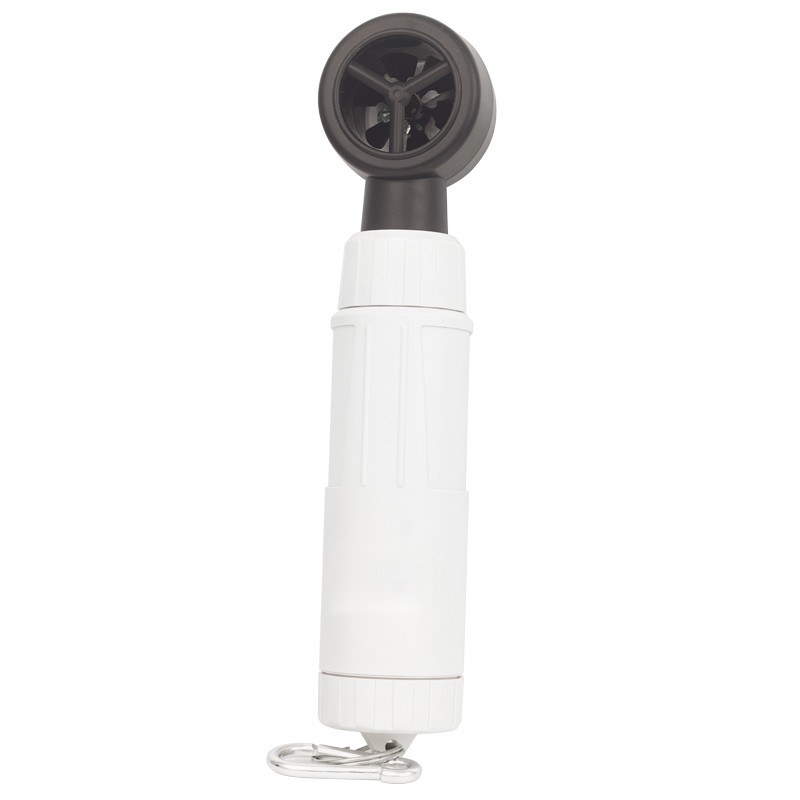

Rugged ABS plastic case is 1-1/2 diameter x 8-1/4 inches; weight is 6 ounces. Supplied with a Traceable® Certificate and four AAA batteries. Replacement battery Cat. No. 1105.
Ambient Temperature Range | 0 to 50°C (32 to 122°F) |
---|---|
Ambient Temp Resolution | 0.1° |
Air Flow Range | 0.4 to 30.0 m/s, 1.4 to 108.0 km/hr, 80 to 5910 ft/min, 0.9 to 67.0 mile/hr, 0.8 to 58.3 knots |
Air Flow Resolution | 0.1 m/s; 0.1 km/hr;1ft/min, 0.1 mile/hr; 0.1 knots |
Air flow Accuracy | ±3% full scale under 20 m/s, ±4% full scale over 20 m/s |
Humidity Range | 10.0 to 95.0% RH |
Humidity Resolution | 0.001 |
Humidity Accuracy | ±3 of reading +1 |
Dew Point Range | –13.5 to 120.1°F (–25.3 to 48.9°C) |
Dew Point Resolution | 0.1° |
Min/Max Memory | Y |
Hold (Y/N) | Y |
Average (Y/N) | N |
Data Logging | N |
Exportable Data (Y/N) | N |
Dimensions | 8-1/4"x1-1/2" |
Weight | 6 ounces |
A/C Plug (Y/N) | N |
Traceable | Y |
Supplied With | batteries, Traceable® Certificate |
