- Pressure/Vacuum / Gauge Traceable Printing Manometer

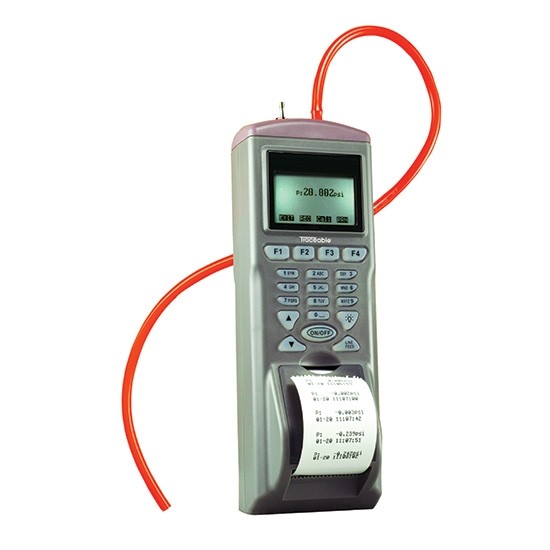

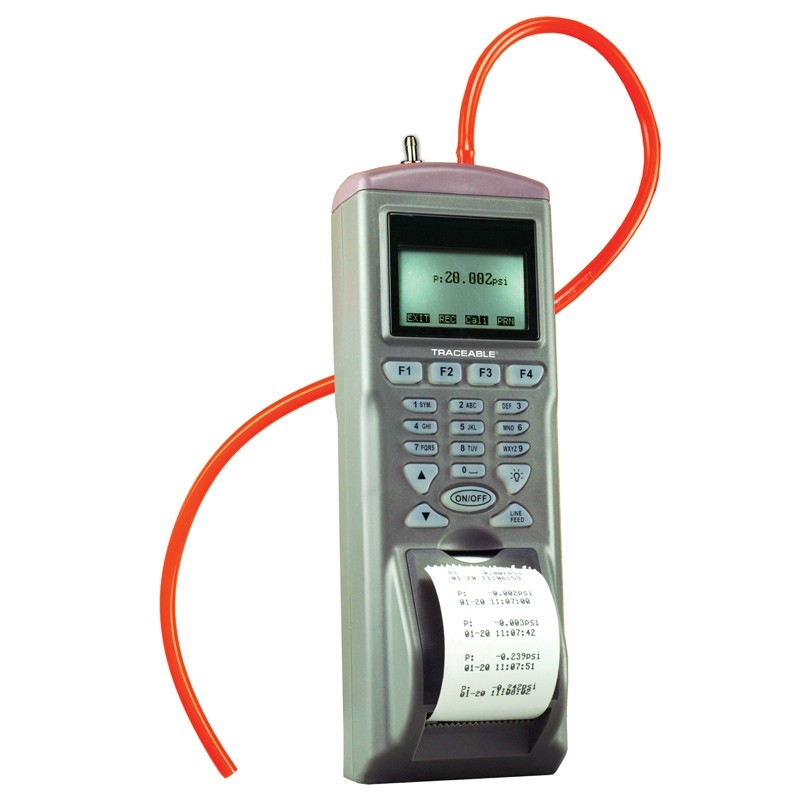

Manometer displays gauge and differential pressure/vacuum in eleven different units. Response time is 0.5 second. Large 5/8-inch-high digits are visible from six feet.
At the touch of a button unit may be zeroed or any pressure may set to zero. Differential feature permits reading the difference of the pressure or vacuum between two different sources. Memory feature recalls highest and lowest reading over any time period. A DATA HOLD key freezes the display to capture readings. Brilliant backlighting permits reading even in dark areas. Computer output permits all units to be connected to a computer for monitoring and storing unlimited results. Accuracy is ±0.3% of full scale between 0 to 50°C.
An individually-numbered Traceable® Certificate provided with each unit, assures accuracy from our ISO/IEC 17025:2005 (1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.
Printing model is supplied with Traceable® Certificate, 2-hose/tubing (4mm or 1/6” width, 19" length, 9-volt battery, computer output, and ABS plastic carrying case. Size is 2-3/4 x 7-1/8 x 1-1/8 inches and weight is 5 ounces. Replacement battery Cat. No. 1112.
|Max Allowed PSI||20|
|PSI Range||–5.000 to 5.000|
|mbar Range||–345.0 to 345.0|
|bar Range||–0.3450 to 0.3450|
|cm/H20 Range||–351.0 to 351.0|
|inch/H20 Range||–138.0 to 138.0|
|feet/H20 Range||–12.00 to 12.00|
|mm/Hg Range||–259.0 to 259.0|
|inch/Hg Range||–10.00 to 10.00|
|kg/cm2 Range||–0.350 to 0.350|
|oz/inch2 Range||–80.00 to 80.00|
|kPa Range||–34.50 to 34.50|
|A/C Plug (Y/N)||N|
|Supplied With||Traceable® Certificate, hose/tubing, batteries, carrying case, paper roll|
