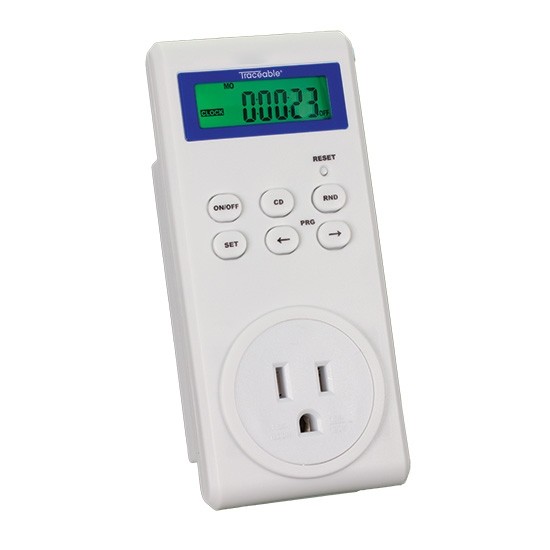

- 5090 Outlet Traceable Controller
Versatile and economical controller may be programmed to turn equipment on and off at any minute of any day. A fail-safe memory permits programming 14 different switchings per day. They may be allocated over four separate weekly programs for up to 196 switchings per week. Random function automatically turns the controller on and off at random intervals.
Easy to program
Schedule an entire week with the press of a few buttons. Switches located on the front panel control the entire operation.
Set intervals from 1 minute to 168 hours
The Outlet Controller will turn equipment on and off in intervals as short as 1 minute or as long as 168 hours. Turn an instrument on today and off a week later.
Battery backup
A manual override permits equipment to be switched on or off without disturbing the program. Program and clock times are maintained by a backup battery in the event of an electrical outage. Brilliant, 1/2-inch-high LCD shows the time-of-day, day, and event number.
Traceable® Certificate
An individually-numbered Traceable® Certificate provided with each unit, assures accuracy from our ISO/IEC 17025:2017 (1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.
CSA-and NTRL-C rated unit controls equipment to 125 VAC, 50/60 Hz, 15 amps, 1850 watts with a timing accuracy of 0.01%. Supplied with two 1.5-volt batteries. High-impact ABS plastic case is 2 x 4 x 3-1/2 inches. Weight is 5-1/2 ounces. Replacement battery Cat. No. 1039.| Timing Capacity/Range | 1 min to 168 hrs |
|---|---|
| Horsepower | 1/3 HP |
| Controller Accuracy | 0.01% |
| Power Capacity | 125 VAC, 50/60 Hz, 15 amps, 1850 watts |
| Features | turns equipment on/off, manual override, memory, random interval setting, time-of-day program, backup battery |
| Dimensions | 2"x4"x3-1/2" |
| Weight | 5-1/2 ounces |
| A/C Plug (Y/N) | Y(Included) |
| Traceable | Y |
| Supplied With | battery, Traceable® Certificate |
